| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Type | with Latch |
| Number of Elements | 1 |
| Output Type | CML, Complementary |
| Voltage – Supply, Single/Dual (±) | 3.1V ~ 5.4V |
| Voltage – Input Offset (Max) | 2mV @ 3.3V |
| Current – Input Bias (Max) | 25µA @ 3.3V |
| Current – Output (Typ) | 20mA |
| Current – Quiescent (Max) | 52mA |
| CMRR, PSRR (Typ) | 65dB CMRR, 74dB PSRR |
| Propagation Delay (Max) | 0.165ns |
| Hysteresis | ±1mV |
| Operating Temperature | -40°C ~ 85°C |

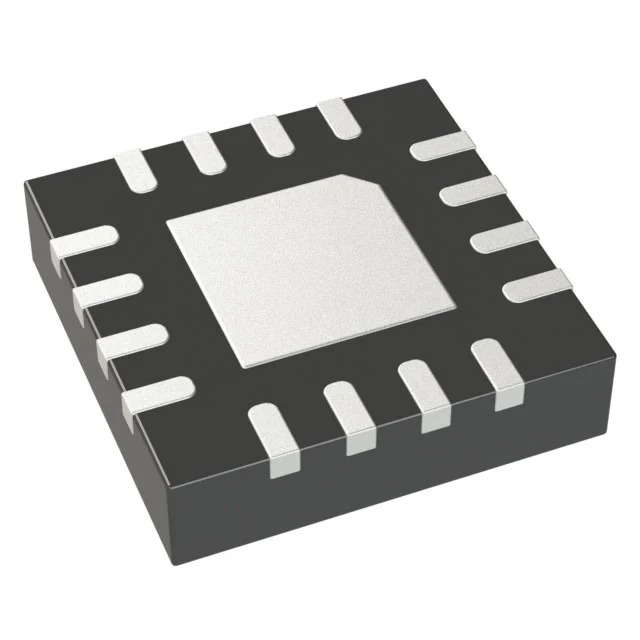

| Package / Case | 16-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-LFCSP (3×3) |
| Base Product Number | ADCMP572 |
