Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Number of Bits | 16 |
| Number of D/A Converters | 16 |
| Settling Time | 12µs |
| Output Type | Voltage – Unbuffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Voltage – Supply, Analog | 2.97V ~ 16V |
| Voltage – Supply, Digital | – |
| INL/DNL (LSB) | ±16, ±1 |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 105°C |

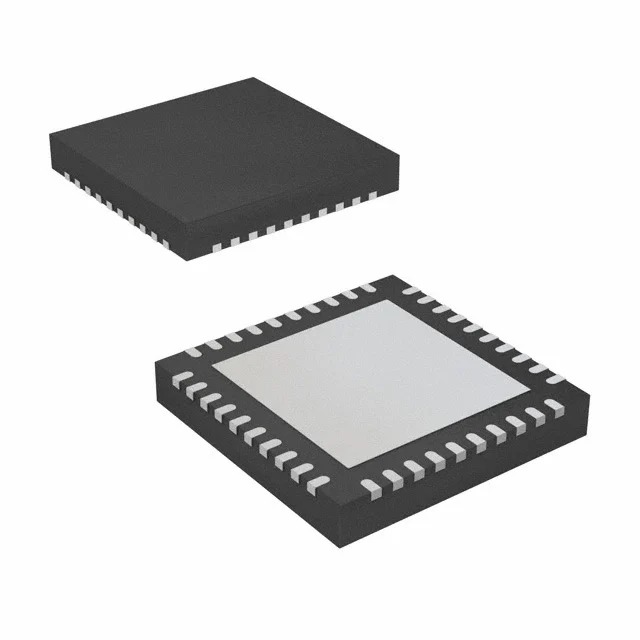

| Package / Case | 40-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 40-LFCSP-WQ (6×6) |
| Mounting Type | Surface Mount |
| Base Product Number | AD5766 |
