Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | nanoDAC® |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Number of Bits | 18 |
| Number of D/A Converters | 1 |
| Settling Time | 85µs |
| Output Type | Voltage – Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Voltage – Supply, Analog | 5V |
| Voltage – Supply, Digital | 5V |
| INL/DNL (LSB) | ±32, ±2 (Max) |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 105°C |

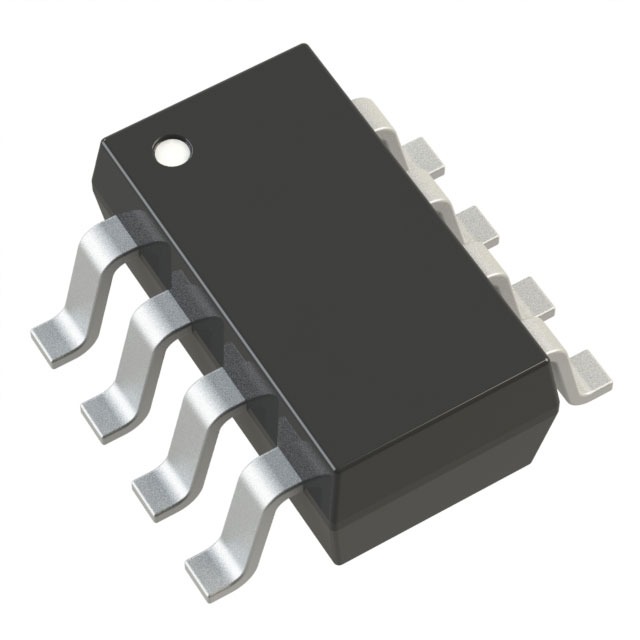

| Package / Case | SOT-23-8 |
| Supplier Device Package | SOT-23-8 |
| Mounting Type | Surface Mount |
| Base Product Number | AD5680 |
