Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 2 |
| Settling Time | 10µs |
| Output Type | Voltage – Buffered |
| Differential Output | No |
| Data Interface | I2C |
| Reference Type | External |
| Voltage – Supply, Analog | 2.5V ~ 5.5V |
| Voltage – Supply, Digital | 2.5V ~ 5.5V |
| INL/DNL (LSB) | ±2, ±0.2 |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 105°C |

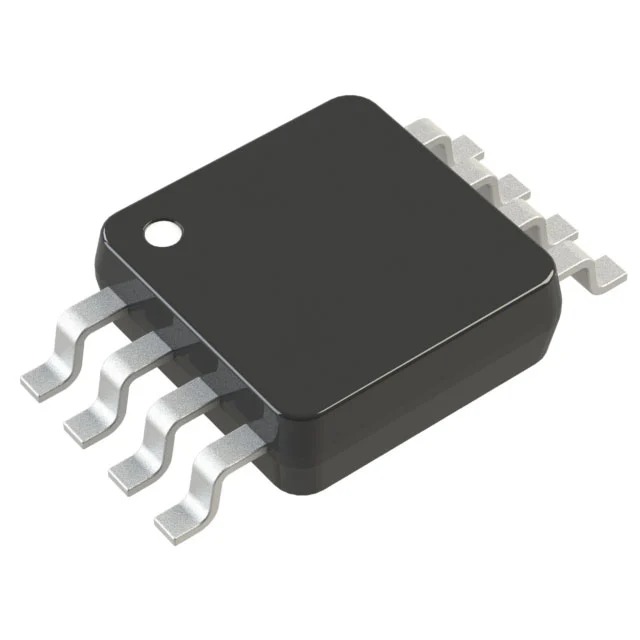

| Package / Case | 8-TSSOP, 8-MSOP (0.118″, 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Mounting Type | Surface Mount |
| Base Product Number | AD5339 |
