Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Number of Bits | 10 |
| Number of D/A Converters | 4 |
| Settling Time | 9µs |
| Output Type | Voltage – Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Voltage – Supply, Analog | 2.5V ~ 5.5V |
| Voltage – Supply, Digital | 2.5V ~ 5.5V |
| INL/DNL (LSB) | ±0.5, ±0.05 |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 105°C |

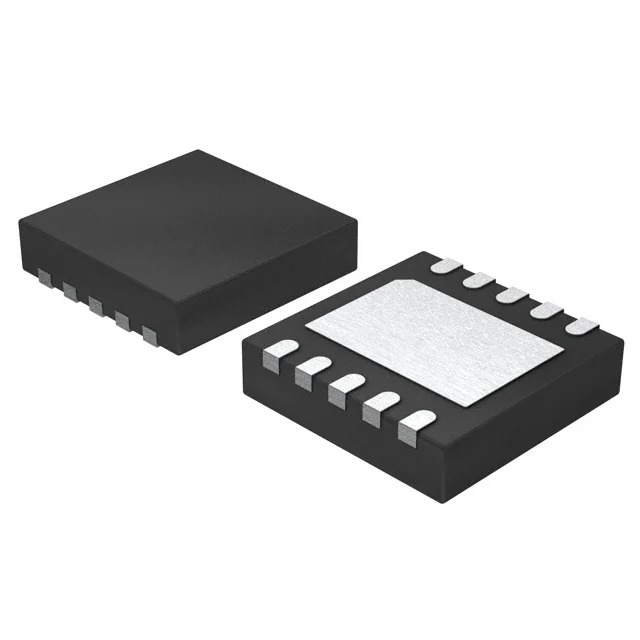

| Package / Case | 10-VFDFN Exposed Pad, CSP |
| Supplier Device Package | 10-LFCSP-WD (3×3) |
| Mounting Type | Surface Mount |
| Base Product Number | AD5314 |
