Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | – |
| Packaging | Tube |
| Part Status | Active |
| Number of Bits | 8 |
| Number of D/A Converters | 1 |
| Settling Time | 6µs |
| Output Type | Voltage – Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | Supply |
| Voltage – Supply, Analog | 2.7V ~ 5.5V |
| Voltage – Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±1 (Max), ±0.25 (Max) |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 105°C |

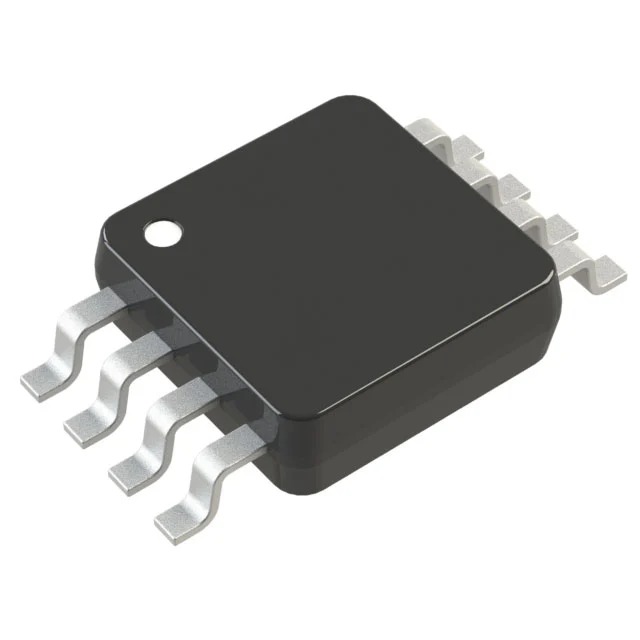

| Package / Case | 8-TSSOP, 8-MSOP (0.118″, 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Mounting Type | Surface Mount |
| Base Product Number | AD5300 |
