Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

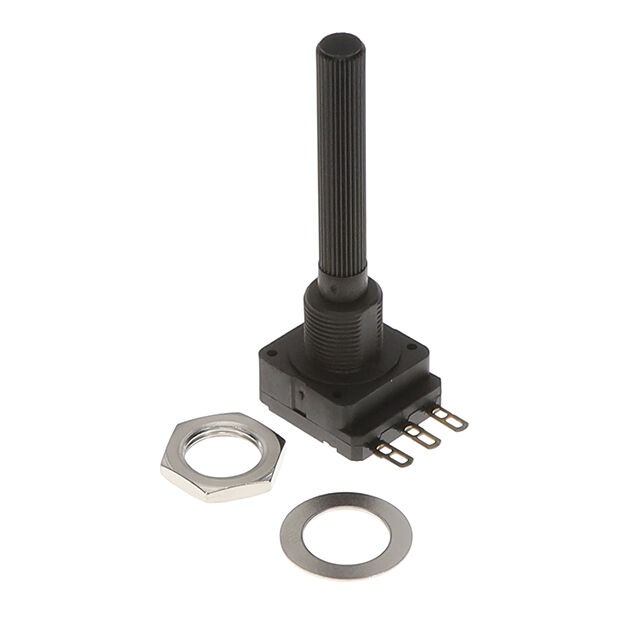

| Manufacturer | Amphenol Piher Sensing Systems |
| Series | PC-16 |
| Packaging | Bulk |
| Part Status | Active |
| Resistance (Ohms) | 470 |
| Tolerance | ±20% |
| Power (Watts) | 0.2W, 1/5W |
| Built in Switch | None |
| Number of Turns | 1.0 |
| Features | – |
| Taper | Linear |
| Number of Gangs | 1 |
| Adjustment Type | Side Adjustment |
| Temperature Coefficient | ±300ppm/°C |
| Rotation | 300° |
| Resistive Material | Carbon |
| Termination Style | Solder Lug |
| Actuator Type | Knurled |
| Actuator Length | 1.772″ (45.00mm) |
| Actuator Diameter | 0.236″ (6.00mm) |
| Bushing Thread | M10 x 0.75 |
| Mounting Type | Panel Mount |
| Size – Body | Square – 0.630″ x 0.630″ Face (16.00mm x 16.00mm) |
