Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

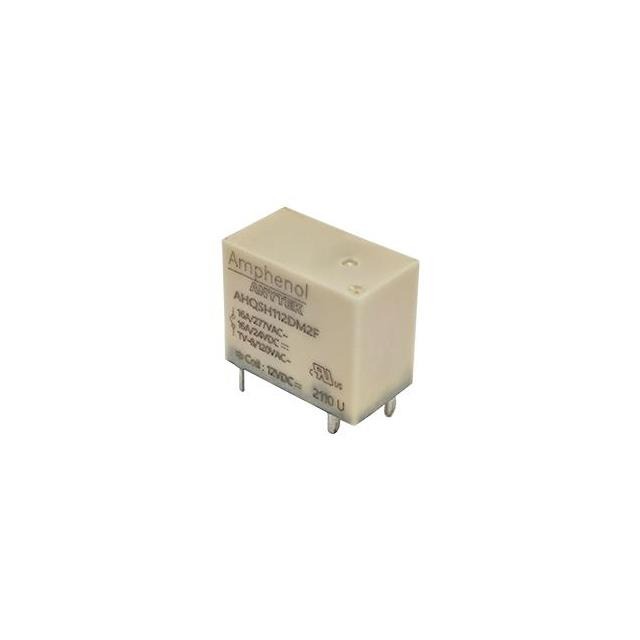

| Mfr | Amphenol Anytek |
| Series | AHQ |
| Packaging | Box |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 277VAC, 24VDC – Max |
| Load – Max Switching | 4432VA, 384W |
| Coil Current | 71.4 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | Sealed – Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 4.0 VDC |
| Must Release Voltage | 0.25 VDC |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 105°C |
| Contact Material | Silver Alloy |
| Approval Agency | – |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 70.03 Ohms |
| Base Product Number | AHQSS105 |
