Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

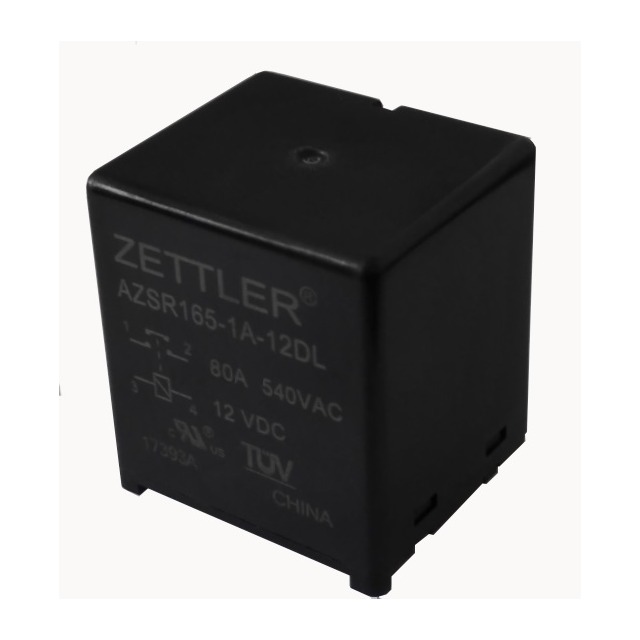

| Mfr | American Zettler |
| Series | AZSR165 |
| Packaging | Tube |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 80 A |
| Switching Voltage | 690VAC – Max |
| Load – Max Switching | 55200VA |
| Coil Current | 184.6 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | – |
| Coil Insulation | Class F |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 40 ms |
| Release Time | 20 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | TUV, UL |
| Relay Type | EV Charging, Solar |
| Grade | – |
| Qualification | – |
| Coil Resistance | 65 Ohms |
| Base Product Number | AZSR165 |
