Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

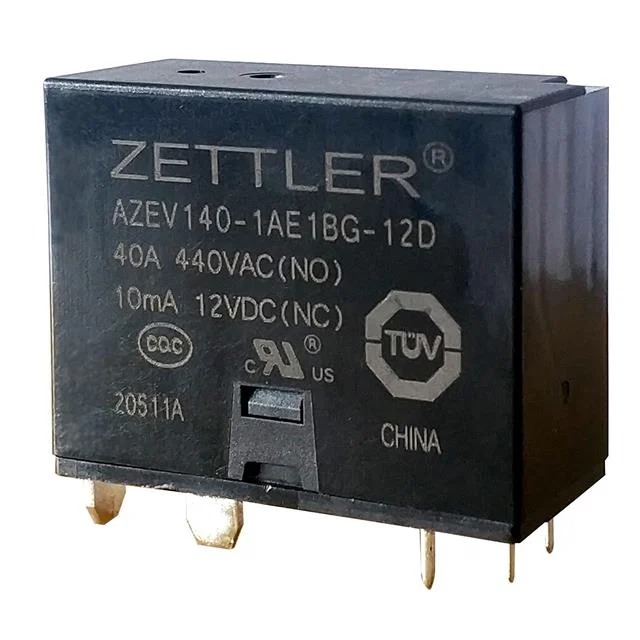

| Mfr | American Zettler |
| Series | AZEV140 |
| Packaging | Tray |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | DPST-NO/NC (1 Form A, 1 Form B) |
| Contact Rating (Current) | 50 A |
| Switching Voltage | 440VAC – Max |
| Load – Max Switching | 22000VA |
| Coil Current | 175.2 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin, Quick Connect – 0.187″ (4.7mm) |
| Seal Rating | – |
| Coil Insulation | Class F |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 30 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO); Silver Nickel (AgNi), Gold (Au) |
| Approval Agency | CQC, cURus, TUV |
| Relay Type | EV Charging |
| Grade | – |
| Qualification | – |
| Coil Resistance | 68.5 Ohms |
| Base Product Number | AZEV140 |
