Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

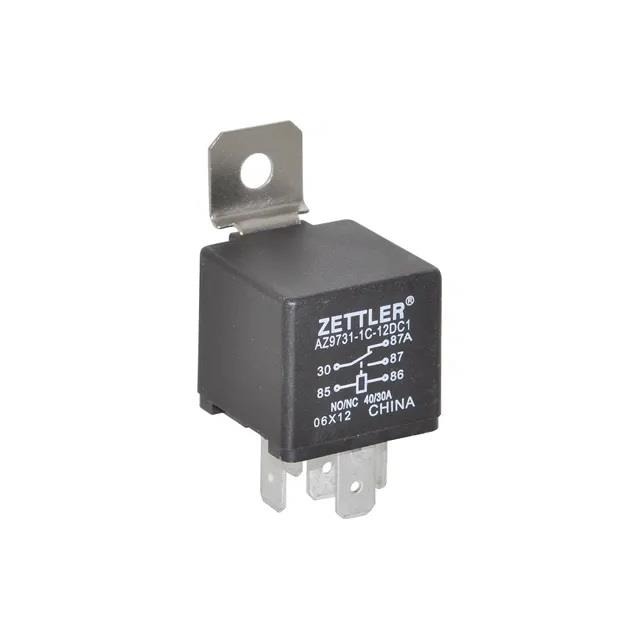

| Manufacturer | American Zettler |
| Series | AZ9731 |
| Packaging | Tray |
| Part Status | Active |
| Coil Type | Non Latching |
| Coil Current | 133.3 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 75VDC – Max |
| Must Operate Voltage | 7.8 VDC |
| Must Release Voltage | 1.8 VDC |
| Operate Time | 7 ms |
| Release Time | 5 ms |
| Features | MINI-ISO w/ Steel Mounting Bracket |
| Mounting Type | Chassis Mount |
| Termination Style | Plug In, Quick Connect – 0.250″ (6.3mm) |
| Operating Temperature | -40°C ~ 125°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Coil Power | 1.6W |
| Coil Resistance | 90 Ohms |
| Base Product Number | AZ9731 |
