Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

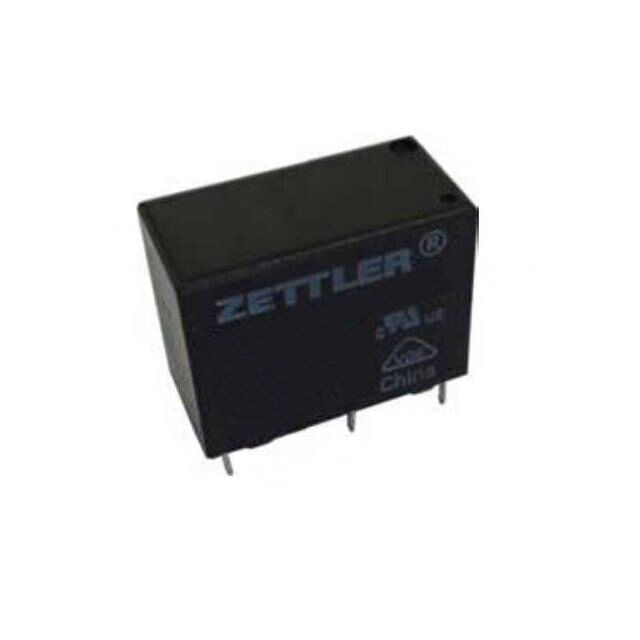

| Mfr | American Zettler |
| Series | AZ9403 |
| Packaging | Tray |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 400VAC, 150VDC – Max |
| Load – Max Switching | 2770VA, 150W |
| Coil Current | 90.9 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | Sealed – Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 3.8 VDC |
| Must Release Voltage | 0.25 VDC |
| Operate Time | 8 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 110°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | UL, VDE |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 55 Ohms |
| Base Product Number | AZ9403-1C |
