Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

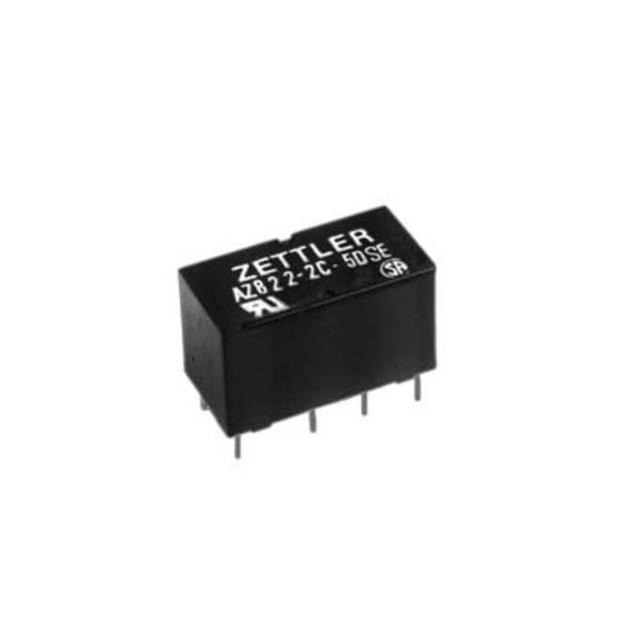

| Manufacturer | American Zettler |
| Series | AZ822 |
| Packaging | Tray |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 250VAC, 220VDC – Max |
| Load – Max Switching | 125VA, 60W |
| Coil Current | 29.9 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | Sealed – Fully |
| Coil Insulation | – |
| Must Operate Voltage | 3.5 VDC |
| Must Release Voltage | 0.25 VDC |
| Operate Time | 5 ms |
| Release Time | 2 ms |
| Operating Temperature | -55°C ~ 90°C |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Approval Agency | CUR, UL |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 167 Ohms |
| Base Product Number | AZ822 |
