Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

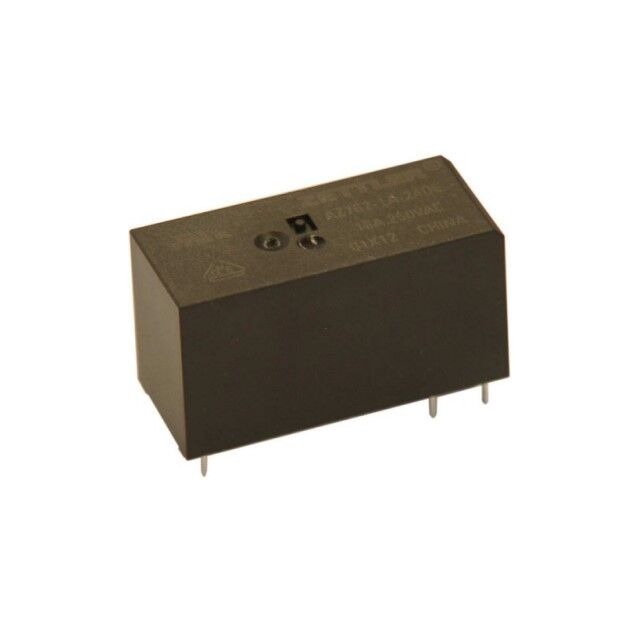

| Mfr | American Zettler |
| Series | AZ762 |
| Packaging | Box |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 440VAC, 150VDC – Max |
| Load – Max Switching | 5540VA, 480W |
| Coil Current | 33.3 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | Sealed – Fully |
| Coil Insulation | Class B |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 7 ms |
| Release Time | 3 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CUR, UL, VDE |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 360 Ohms |
| Base Product Number | AZ762-1A |
