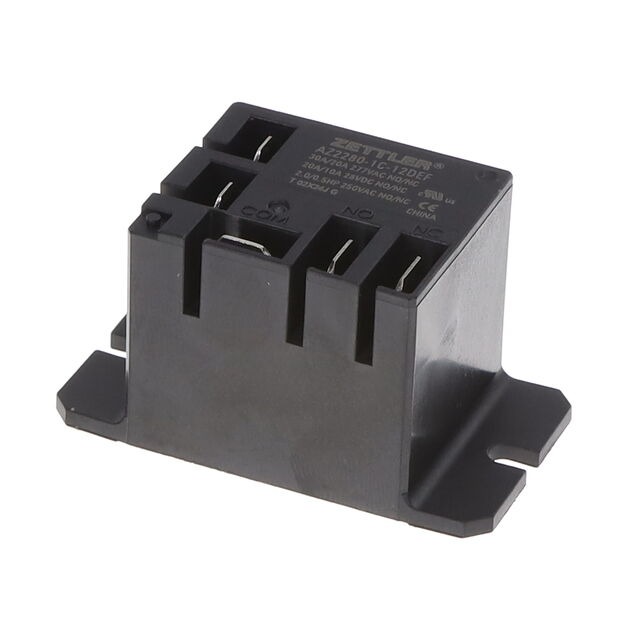

Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | American Zettler |
| Series | AZ2280 |
| Packaging | Box |
| Part Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 20 A |
| Switching Voltage | 277VAC, 28VDC – Max |
| Load – Max Switching | 11080VA, 840W |
| Coil Current | 77.4 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | Quick Connect – 0.187″/0.250″ |
| Seal Rating | Sealed – Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -55°C ~ 85°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CUR, UL, VDE |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 155 Ohms |
| Base Product Number | AZ2280-1C |
