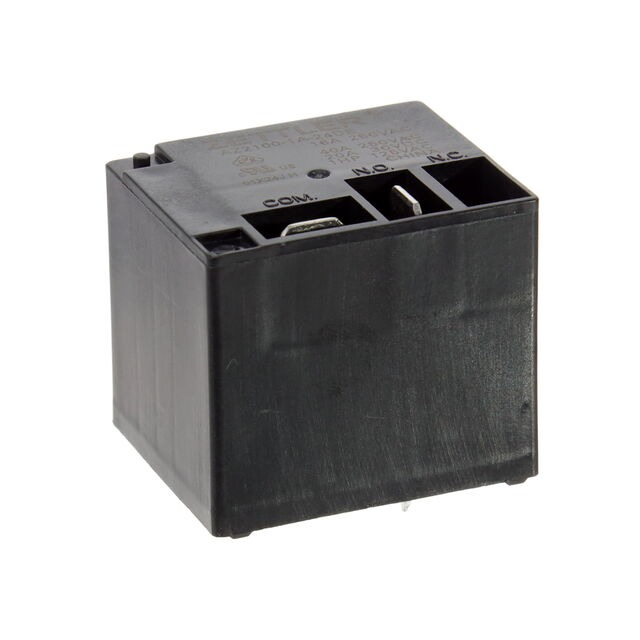

Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | American Zettler |
| Series | AZ2100 |
| Packaging | Box |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 40 A |
| Switching Voltage | 300VAC, 30VDC – Max |
| Load – Max Switching | 12000VA, 1200W |
| Coil Current | 36.4 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin, Quick Connect – 0.250″ (6.3mm) |
| Seal Rating | Sealed – Fully |
| Coil Insulation | Class B |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -55°C ~ 85°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | cURus, VDE |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 660 Ohms |
| Base Product Number | AZ2100-1A |
