Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | AMD |
| Series | Versal™ Prime |
| Packaging | Tray |
| Part Status | Active |
| Architecture | MPU, FPGA |
| Core Processor | Dual ARM® Cortex®-A72 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5F with CoreSight™ |
| Flash Size | – |
| RAM Size | – |
| Peripherals | DDR, DMA, PCIe |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
| Speed | 600MHz, 1.4GHz |
| Primary Attributes | Versal™ Prime FPGA, 1.2M Logic Cells |
| Operating Temperature | 0°C ~ 100°C (TJ) |

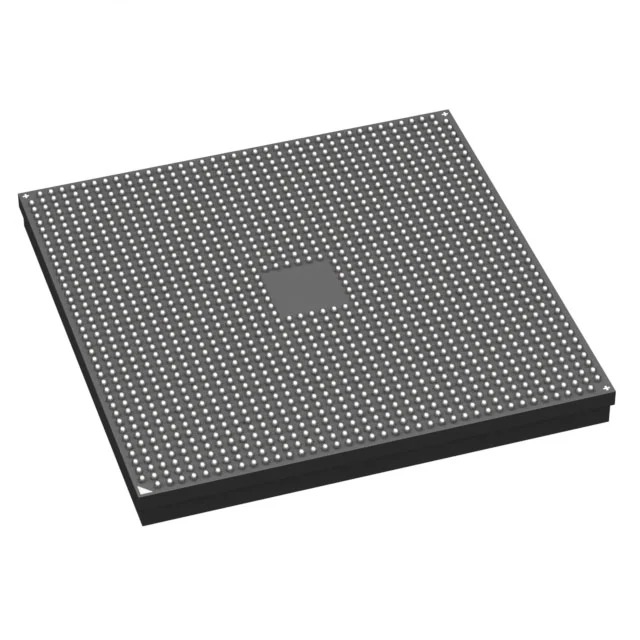

| Package / Case | 1596-BFBGA |
| Supplier Device Package | 1596-BGA (37.5×37.5) |
| Number of I/O | 748 |
