Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Advantech Corporation |
| Series | Mini-ITX Motherboard |
| Packaging | Box |
| Part Status | Obsolete |
| Core Processor | Intel 8th/9th Gen Core i7/i5/i3/Pentium/Celeron LGA1151 |
| Speed | 1.8GHz ~ 3.7GHz |
| Number of Cores | 2/4/6/8 |
| Power (Watts) | 35W ~ 65W |
| Cooling Type | – |
| Size / Dimension | 6.690″ x 6.690″ (169.92mm x 169.92mm) |
| Form Factor | Mini-ITX |
| Expansion Site/Bus | LAN, M.2, PCIe |
| RAM Capacity/Installed | 64GB/0GB |
| Storage Interface | SATA 3.0 (3) |
| Video Outputs | eDP, DP, DVI, HDMI, LCD, LVDS |
| Ethernet | 10/100/1000 Mbps (2), RJ45 (2) |
| USB | USB 3.0 (4), USB 3.1 (6) |
| RS-232 (422, 485) | 2 |
| Digital I/O Lines | 8 |
| Analog Input:Output | – |
| Watchdog Timer | Yes |
| Contents | – |
| Operating Temperature | 0°C ~ 60°C |

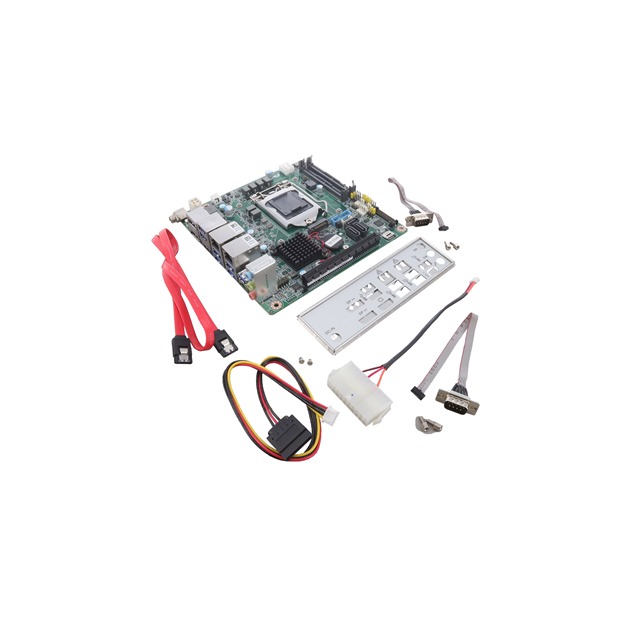

| Base Product Number | AIMB-276 |
