Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Adam Tech |
| Series | MDP |
| Packaging | Bag |
| Part Status | Active |

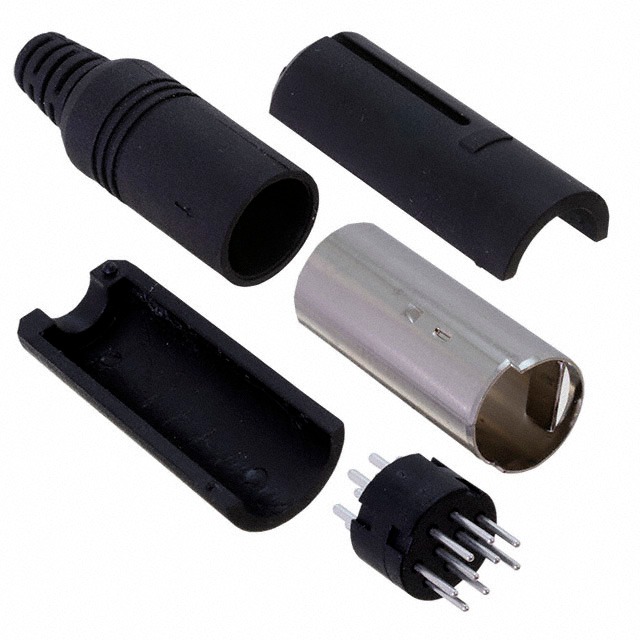

| Connector Type | Plug, Male Pins |
| Number of Positions | 9 |
| Shell Size – Insert | Mini DIN |
| Shell Size, MIL | – |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | – |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polyacrylonitrile Butadiene Styrene (ABS) |
| Shell Finish | Tin |
| Contact Finish – Mating | Silver |
| Color | Black |
| Ingress Protection | – |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Strain Relief |
| Shielding | Shielded |
| Current Rating (Amps) | 1A |
| Voltage Rating | 100VAC, 12VDC |
| Cable Opening | 0.197″ (5.00mm) |
| Operating Temperature | -25°C ~ 70°C |
| Backshell Material, Plating | Ethylene Vinyl Acetate (EVA) |
| Contact Material | Brass |
| Contact Finish Thickness – Mating | – |
| Insert Material | Polyamide (PA6), Nylon 6 |
| Applications | Audio, Video |
| Base Product Number | MDP |
