Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

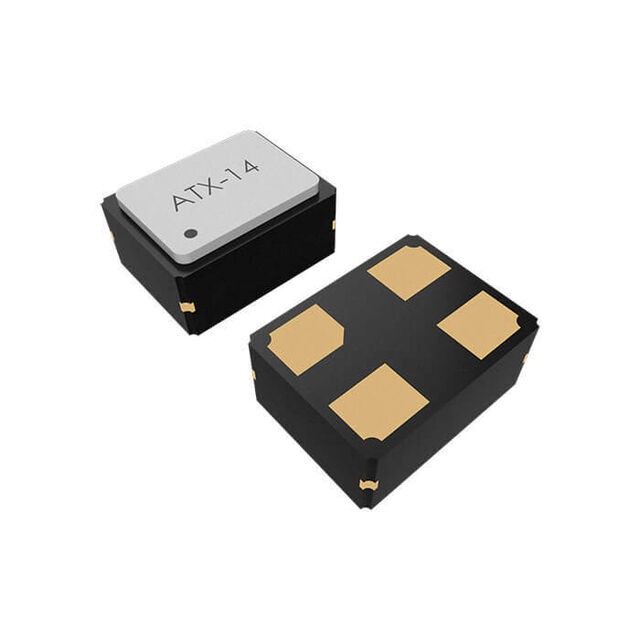

| Mfr | Abracon LLC |
| Series | ATX-14 |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Base Resonator | Crystal |
| Type | TCXO |
| Frequency | 38.4 MHz |
| Function | – |
| Output | Clipped Sine Wave |
| Voltage – Supply | 1.68V ~ 3.63V |
| Frequency Stability | ±500ppb |
| Absolute Pull Range (APR) | – |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | – |
| Current – Supply (Max) | 2.5mA |
| Ratings | – |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.065″ L x 0.049″ W (1.65mm x 1.25mm) |
| Height – Seated (Max) | 0.031″ (0.80mm) |
| Current – Supply (Disable) (Max) | – |
