Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | 3M |
| Series | 3N1 |
| Packaging | Bulk |
| Part Status | Active |

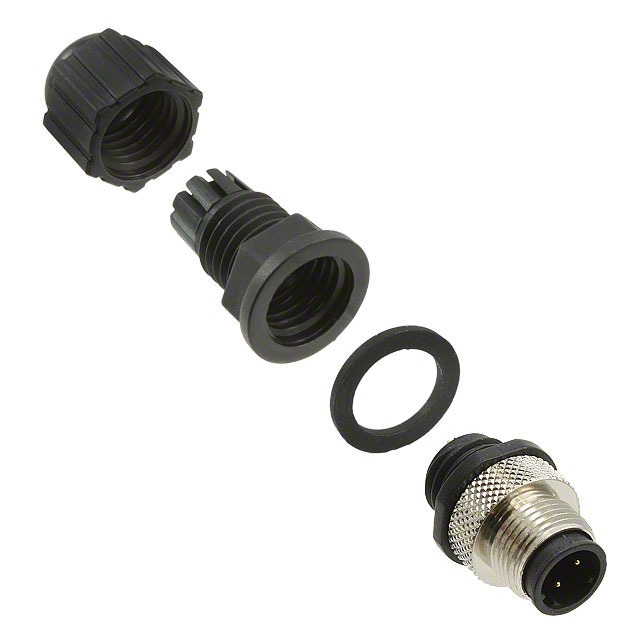

| Connector Type | Plug, Male Pins |
| Number of Positions | 4 |
| Shell Size – Insert | M12-4 |
| Shell Size, MIL | – |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | – |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | D |
| Primary Material | Metal |
| Shell Material | Metal |
| Shell Finish | – |
| Contact Finish – Mating | Gold |
| Color | Silver |
| Ingress Protection | IP68 – Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Shielded |
| Current Rating (Amps) | 4A |
| Voltage Rating | 250VDC |
| Cable Opening | – |
| Operating Temperature | -25°C ~ 85°C |
| Backshell Material, Plating | Thermoplastic |
| Contact Material | Copper Alloy |
| Contact Finish Thickness – Mating | 8.00µin (0.203µm) |
| Insert Material | Thermoplastic |
| Applications | Industrial |
| Base Product Number | 3N104 |
